XL830L Digital Multimeter Multi-Function Resistance Voltage Analyzer

XL830L Digital Multimeter – Multi-Function Resistance Voltage Analyzer with LCD Display

Product Details:

The XL830L Digital Multimeter is a battery-operated, portable measuring tool designed to monitor DC and AC voltage, DC current, resistance, diode, and transistor testing. This compact and user-friendly multimeter is ideal for electricians, technicians, engineers, and students. It provides precise readings on a high-contrast LCD display, making it an essential tool for circuit board repairs, troubleshooting electrical systems, and learning electronics.

Key Features:

• Model: XL830L Digital Multimeter

• Large 15mm LCD Display with auto polarity detection (max display: 1999)

• Compact & Portable Design with overload protection for all ranges

• Diode assembly test, transistor P-N junction test, and HFE test

• Continuity test with buzzer sound for circuit troubleshooting

• Data Hold Function for easy reading and analysis

• Low Battery Voltage Indicator

• Durable fuse protection (F-200mA/250V) for added safety

Technical Specifications:

• DC Voltage Measurement: 200mV/2V/20V/200V (±0.5%), 600V (±0.8%)

• AC Voltage Measurement: 200V/600V (±1.2%)

• DC Current Measurement: 200μA, 2mA, 20mA (±1%), 200mA (±1.5%), 10A (±3%)

• Resistance Measurement: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ (±0.8%)

• Overrange Indication: Displays "1" on the screen

• Polarity Indication: Displays "-" for negative polarity

• Operating Temperature: 0°C to 40°C

• Power Source: 9V battery (Battery not included)

Safety Notes:

• Do not modify the internal circuit to avoid damage.

• Avoid measuring voltage above 1000V DC or 750V AC.

• Ensure proper range selection before measurement.

• Replace the battery or fuse only when the device is powered off and disconnected.

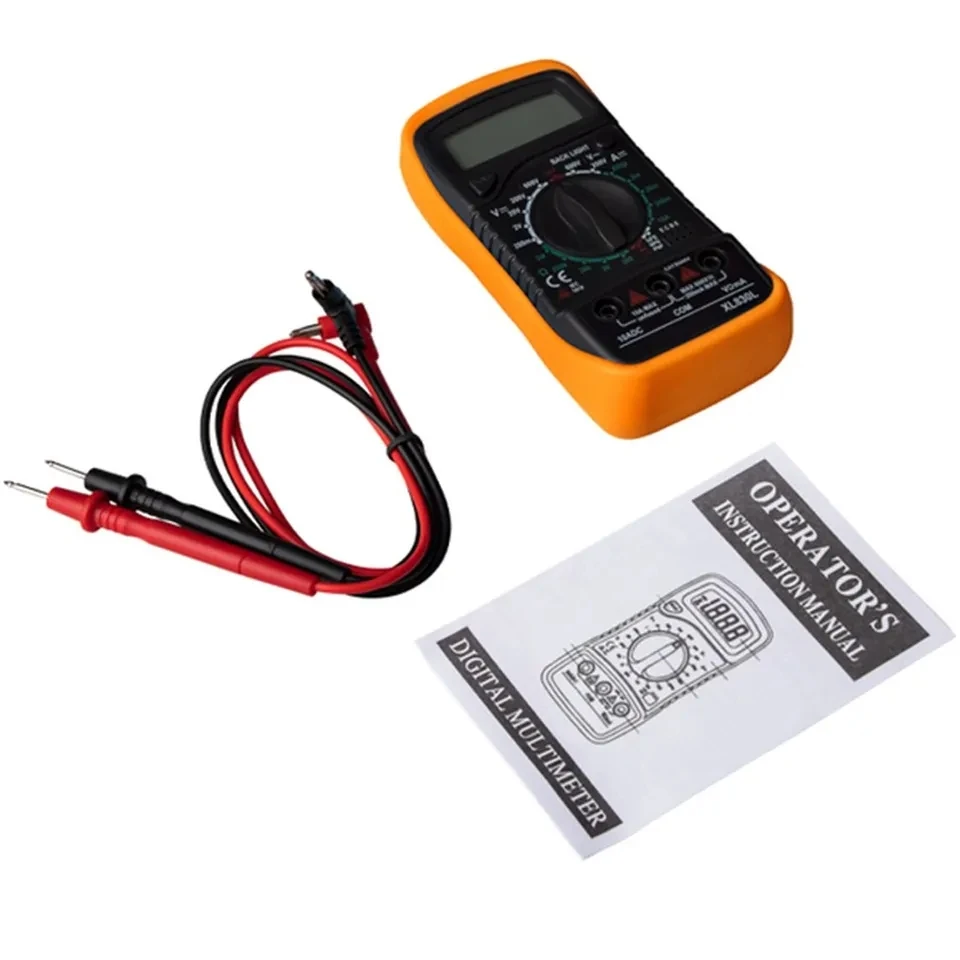

Package Includes:

• 1 x XL830L Digital LCD Multimeter

• 1 x Pair of Test Leads (Red & Black)

• 1 x User Manual
